High Precision Stainless Steel Photo-etched Fine Metal Filter Mesh Screen For Filtration

High Precision Stainless Steel Photo-etched Fine Metal Filter Mesh Screen For Filtration

Marchio:	XHS/ Customized
Numero di modello:	costume
MOQ:	10
prezzo:	50-100USD
Condizioni di pagamento:	T/T
Capacità di approvvigionamento:	10000-100000pcs / Week

Informazioni dettagliate

Descrizione del prodotto

Ratings & Reviews

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

ISO 9001, ISO 14001

Materiali:

Acciaio inossidabile (304, 316), nichel, rame, ottone, titanio

Spessore:

0,02 mm - 1,5 mm

Tolleranza:

+/- 0,005 mm

processo di produzione:

Fotoincisione chimica, placcatura, stampaggio, taglio laser

Finitura superficiale:

Metalli naturali o elettrolizzati

Altri trattamenti:

Lavoratori di macchine per la produzione di prodotti chimici o di prodotti chimici

Imballaggi particolari:

PE borse e cartoni / personalizzati

Capacità di alimentazione:

10000-100000pcs / Week

Evidenziare:

stainless steel photo etch mesh

fine metal filter mesh screen

high precision filtration mesh

Descrizione del prodotto

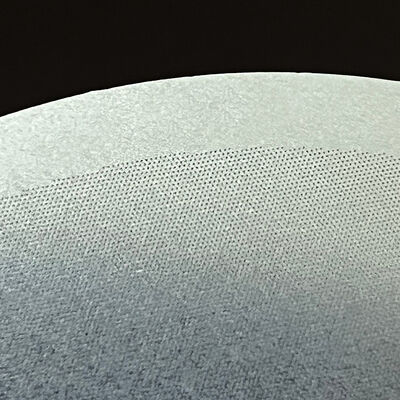

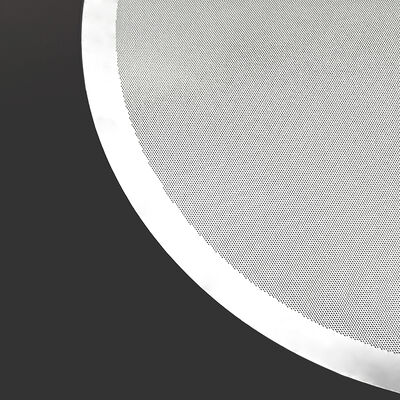

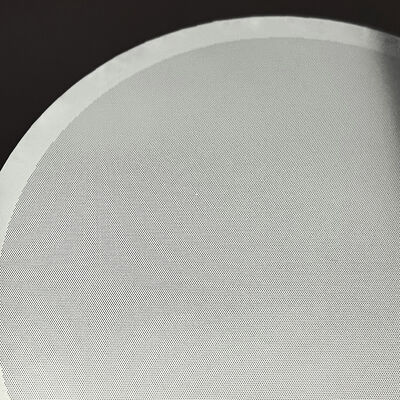

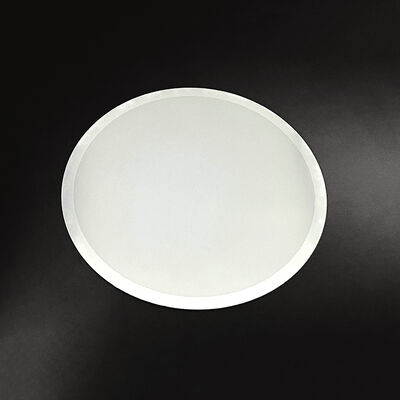

High Precision Stainless Steel Photo-etched Fine Metal Filter Mesh Screen For Filtration

Our high precision stainless steel photo-etched filter mesh screens are manufactured using advanced photo chemical etching technology, enabling the production of ultra-fine, burr-free filtration components with excellent dimensional accuracy and consistency. Compared with woven wire mesh or mechanically punched screens, chemical etching provides superior control over micro hole geometry and open area, ensuring reliable and repeatable filtration performance.

Chemical Etching Technology Advantage

Photo chemical etching is a non-contact, stress-free process that allows:

Precise and uniform micro apertures without burrs or deformation
No heat-affected zones, maintaining original material properties
High repeatability for complex and high-density hole patterns
Stable performance for thin and ultra-thin metal filters

This makes photo-etched mesh ideal for applications requiring tight filtration accuracy and long-term reliability.

Specifications of Photo Etched Metal Filter Mesh Screen:

Material	Stainless steel 304,316 or according to your request
Mesh Type	Round hole, square hole, slot hole, hexagonal, or custom design
Thickness	0.02mm-1.5mm
Tolerance	+/-0.005mm
Smallest opening	0.08mm
Sample	Available
Filter rating	100%
Surface	Bright and smooth
Process	Chemical etching
MOQ	500pcs
Feature	No burrs, no broken point and clean
Application	Metal mesh, filter mesh for coffee maker, juice machines

Secondary Processing Options

To meet complete application needs, we provide a variety of post-processing services:

Electropolishing for smoother surfaces and improved cleanliness
Chemical passivation for enhanced corrosion resistance
Forming, bending, and deep drawing
Laser cutting for outer profile accuracy
Assembly with frames or multi-layer lamination

Typical Filtration Applications

Photo-etched stainless steel filter mesh screens are widely used in:

Industrial liquid and gas filtration systems
Automotive fuel, oil, and air filters
Medical and laboratory filtration devices
Chemical processing and environmental equipment
Electronics ventilation and protection filters

With strong chemical etching expertise, strict quality control, and flexible customization capability, we deliver precision metal filter mesh solutions that meet demanding filtration standards.

How to Customize photo etched metal filter mesh screen from us?

Send Requirements
Provide material, thickness, hole size/pattern, dimensions, or drawings.
Engineering Review
We evaluate etching feasibility and optimize the design if needed.
Sample Approval
Photo-etched samples are made for testing and confirmation.
Mass Production
Stable, burr-free production after sample approval.
Secondary Processing
Optional polishing, passivation, forming, or assembly.
